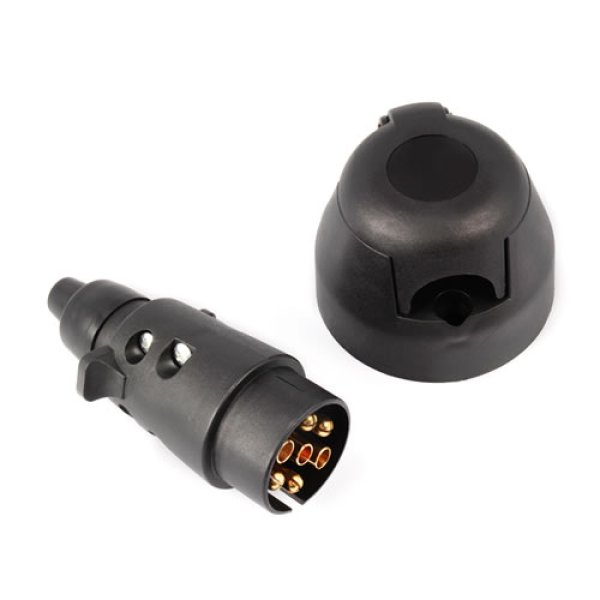

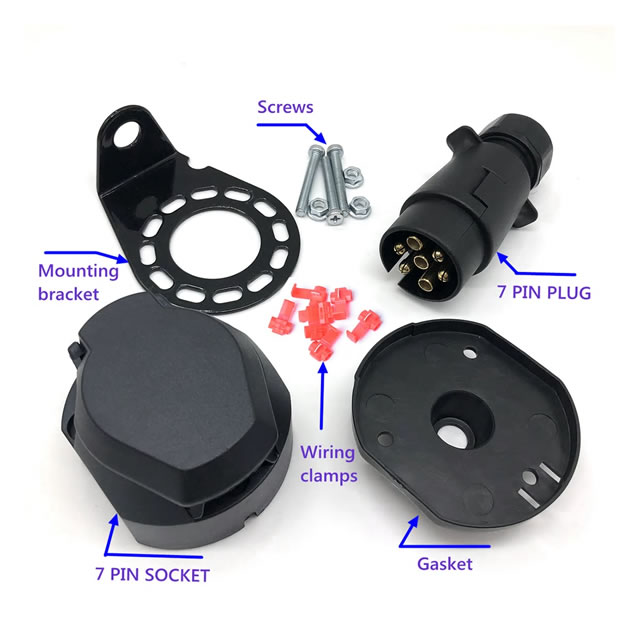

ヨーロッパ7極用 ソケット、プラグ [97722]

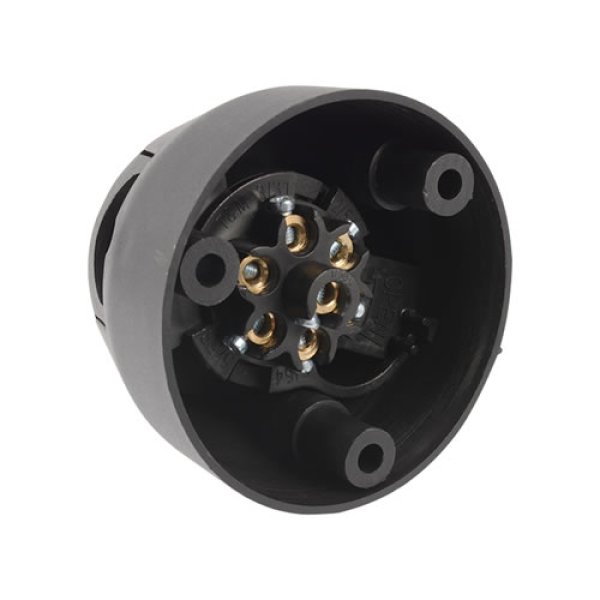

7 極　丸ピンソケット　12V

PIN 1 – Yellow Wire (Left/Hand Direction Indicator)
PIN 2 – Blue Wire ( Rear Fog Lamps)
PIN 3 – White Wire ( Earth Return)
PIN 4 – Green Wire (Right/H Direction Indicator)
PIN 5 – Brown Wire (Right/H Tail & No. Plate Lamp)
PIN 6 – Red Wire (Stop Lamp)
PIN 7 – Black Wire (Left/H Tail & No. Plate Lamp)

7 極　丸ピンプラグ　12V

PIN 1 – Yellow Wire (Left/H Direction Indicator)
PIN 2 – Blue Wire ( Rear Fog Lamps )
PIN 3 – White Wire ( Earth Return )
PIN 4 – Green Wire (Right/H Direction Indicator)
PIN 5 – Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 – Red Wire (Brake lights)
PIN 7 – Black Wire (Left/H Tail & No. Plate Lamp )
